Input And Output Module

• Equipment Type
• PLC Digital Input Module

• Application
• Factory Automation, Machinery, Manufacturing & Process Control

• Brand Name
• Mitsubishi Electric

• CPU Support
• Mitsubishi MELSEC Q Series PLC System

• Color
• Black / Grey

• Design
• Compact Modular Design

• Dimension (L*W*H)
• 90*27.4*98 Millimeter (mm)

• Finish
• Industrial Standard Finish

• Humidity
• As Per MELSEC-Q Series General Operating Specifications

• IP Rating
• IP2X

• Input Voltage
• 24 V DC Volt (V)

• Installation Guideline
• Mount on Mitsubishi MELSEC-Q Series Base Unit and connect using compatible 37-pin D-sub connector

• Material
• Industrial Grade Plastic

• Model No
• QX81

• Mounting Type
• Rack Mount

• Part
• 32-Point DC Digital Input Module

• Process
• Industrial Automation and Machine Control

• Processing
• Digital Input Signal Processing

• Product Type
• PLC Digital Input Module

• Service Period
• As Per Application and Operating Conditions

• Size
• COMPACT

• Standard
• UL, cUL, CE (EMC), CE (RoHS), KC (EMC), LR, NK, DNV, ABS, RINA, BV

• Supply Voltage
• 24 V Volt (v)

• Surface Treatment
• Standard Factory Finish

• Technique
• Photocoupler Isolated DC Digital Input

• Temperature
• 55 Celsius (oC)

• Usage
• Industrial Automation, Machine Control, PLC Control Panels

• Warranty
• 1 Year

• Weight
• 160 Grams (g)

• Equipment Type
• PLC Digital Input Module

• Application
• Machine Automation, Process Control, Control Panels

• Brand Name
• Mitsubishi

• CPU Support
• MELSEC AnS / QnAS Series PLC

• Color
• Black / Dark Brown

• Design
• Modular

• Dimension (L*W*H)
• 93.6 *34.5 *130 mm Millimeter (mm)

• Finish
• Industrial Finish

• Humidity
• 10 90% RH, Non-Condensing

• IP Rating
• IP20

• Input Voltage
• 24 V DC Volt (V)

• Installation Guideline
• Mount on Compatible PLC Base Unit and Connect as per Wiring Diagram

• Material
• Industrial Grade Plastic

• Model No

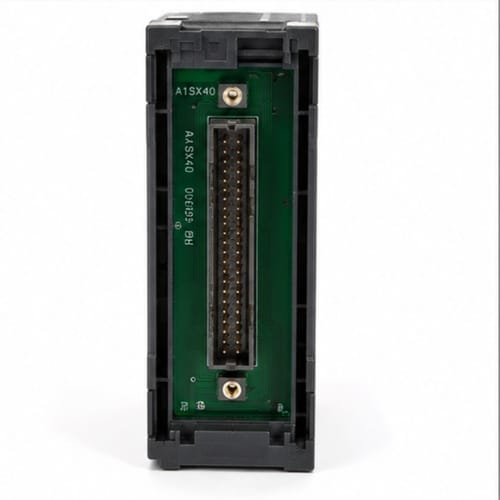

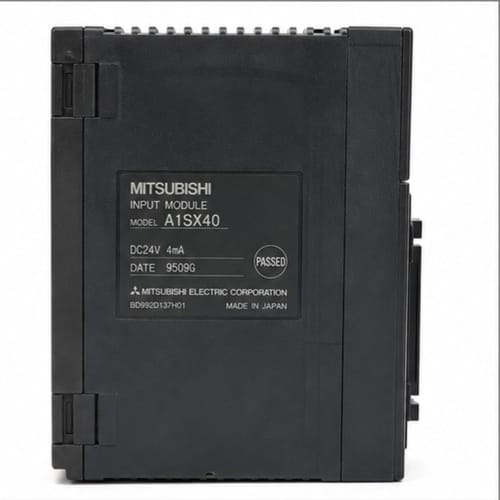

• A1SX40

• Mounting Type
• DIN Rail

• Part
• Digital Input Module

• Process
• PLC Input Monitoring and Control

• Processing
• Digital Input Signal Processing

• Product Type
• PLC Digital Input Module

• Service Period
• Long Service Life

• Size
• 93.6 34.5 130 mm

• Standard
• Industrial Automation Standard

• Supply Voltage
• 12/24 VDC Volt (v)

• Technique
• Microprocessor Based Automation

• Temperature
• 0 C to 55 C Celsius (oC)

• Tolerance
• As Per Manufacturer Specification Gauge

• Usage
• Industrial Automation and PLC Control

• Warranty
• 1 YEAR

• Weight
• 280 Grams (g)

• Equipment Type
• PLC Digital Input Module

• Application
• Machine Automation, Process Control, Control Panels

• Brand Name
• Mitsubishi

• CPU Support
• MELSEC AnS / QnAS Series PLC

• Color
• Black / Dark Brown

• Design
• Modular

• Dimension (L*W*H)
• 93.6 *34.5 *130 mm Millimeter (mm)

• Humidity
• 10 90% RH, Non-Condensing

• IP Rating
• IP20

• Installation Guideline
• Mount on Compatible PLC Base Unit and Connect as per Wiring Diagram

• Material
• Industrial Grade Plastic

• Model No
• Mitsubishi A1SX41

• Part
• Digital Input Module

• Process
• PLC Input Monitoring and Control

• Processing
• Digital Input Signal Processing

• Product Type
• PLC Digital Input Module

• Service Period
• Long Service Life

• Standard
• Industrial Automation Standard

• Supply Voltage
• 12 Volt (v)

• Technique
• Microprocessor Based Automation

• Usage
• Industrial Automation and PLC Control

• Warranty
• 1 YEAR

• Equipment Type
• PLC Digital Input Module

• Application
• Machine Automation, Process Control, Control Panels

• Brand Name
• Mitsubishi

• CPU Support
• MELSEC AnS / QnAS Series PLC

• Color
• Black / Dark Brown

• Design
• Modular

• Dimension (L*W*H)
• 93.6 *34.5 *130 mm Millimeter (mm)

• Humidity
• 10 90% RH, Non-Condensing

• IP Rating
• IP20

• Installation Guideline
• Mount on Compatible PLC Base Unit and Connect as per Wiring Diagram

• Material
• Industrial Grade Plastic

• Model No
• Mitsubishi A1SX42

• Part
• Digital Input Module

• Process
• PLC Input Monitoring and Control

• Processing
• Digital Input Signal Processing

• Product Type
• PLC Digital Input Module

• Service Period
• Long Service Life

• Standard
• Industrial Automation Standard

• Supply Voltage
• 12 Volt (v)

• Technique
• Microprocessor Based Automation

• Usage
• Industrial Automation and PLC Control

• Warranty
• 1 YEAR

• Equipment Type
• I/O Expansion Module

• Application
• Industrial Automation, Process Control

• Brand Name
• Allen-Bradley

• CPU Support
• MicroLogix 1100, 1200, 1400, and 1500

• Color
• Grey

• Design
• Modular

• Dimension (L*W*H)
• 90 x 87 x 40 mm (Approx.)

• Finish
• Industrial

• Frequency
• 50/60 Hz (compatible systems)

• Humidity
• 5% to 95% non-condensing

• IP Rating
• IP20

• Input Voltage
• 0-10V DC, 4-20mA

• Installation Guideline
• DIN Rail or Panel Mount

• Material
• Plastic/Metal

• Model No
• 1762-IF4

• Mounting Type
• DIN Rail

• Part
• Analog Input Module

• Process
• Input Signal Conditioning

• Processing
• Electronics

• Product Type
• PLC Expansion Module

• Service Period
• As per Operations

• Size
• Compact

• Standard
• CE, cULus, KC

• Supply Voltage
• 24V DC (from base unit)

• Technique
• Analog Input

• Temperature
• -20C to 60C

• Thickness
• Standard

• Tolerance
• Non-applicable

• Usage
• Analog signal input for PLC

• Weight
• Approx. 170 g

• Equipment Type
• Point I/O module

• Application
• Process control, data acquisition

• Brand Name
• Allen-Bradley

• CPU Support
• N/A (Remote I/O Module)

• Color
• Grey body

• Design
• Compact, mountable, Point I/O

• Dimension (L*W*H)
• Standard POINT I/O module size

• Finish
• Standard industrial finish

• Humidity
• Non-condensing (exact range: see official datasheet)

• IP Rating
• N/A (refer datasheet for full enclosure details)

• Input Voltage
• +/- 75 mV DC

• Installation Guideline
• See install info on label; Install on approved backplane

• Material
• Industrial grade plastics, electronics

• Model No

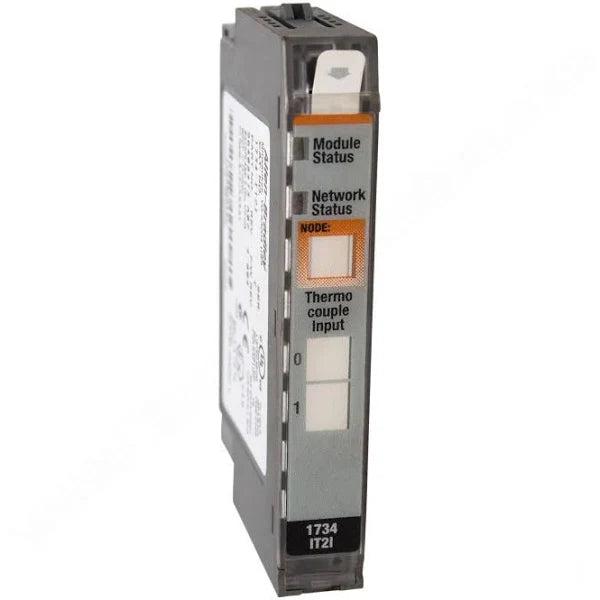

• 1734-IT21

• Mounting Type
• DIN rail (Point I/O system mount)

• Output Voltage
• N/A (input module)

• Part
• 1734-IT21 C (Marked on unit)

• Process
• Temperature measurement and conversion

• Processing
• Electronic signal processing

• Product Type
• Temperature Input Module

• Service Period
• As per operational lifetime (not specified on label)

• Size
• Compact (Point I/O design)

• Standard
• CE, UL, ATEX, EAC certified

• Supply Voltage
• Backplane: 5 VDC, 175 mA

• Surface Treatment
• None/Standard

• Technique
• Surface mount electronics

• Temperature
• Operating: -20C Ta +55C

• Thickness
• Standard casing thickness (model-specific)

• Tolerance
• As per datasheet specifications

• Usage
• Temperature input applications in industrial automation

• Weight
• Approx. 50-100g (typical for module type)

• Equipment Type
• PLC Expansion Module

• Application
• PLC Expansion Module for Analog Inputs

• Brand Name
• Allen-Bradley

• CPU Support
• MicroLogix 1200 and 1100 Series PLCs

• Color
• Grey

• Design
• Compact, Modular

• Dimension (L*W*H)
• 90 mm x 87 mm x 40 mm

• Finish
• Matte, Industrial Finish

• Humidity
• 5% to 95% non-condensing

• IP Rating
• IP20

• Input Voltage
• 10V DC (Typical Input Range)

• Installation Guideline
• DIN Rail Mountable, Connect to MicroLogix PLC

• Material
• Plastic/Industrial Grade Components

• Model No
• 1762-IF4

• Mounting Type
• DIN Rail Mount

• Part
• 1762-IF4

• Process
• Signal Acquisition and Conversion

• Processing
• Analog Signal Processing

• Product Type
• Analog Input Module

• Service Period
• Estimated 10+ Years

• Size
• 90 x 87 x 40 mm

• Standard
• CE, UL, c-UL, C-Tick

• Supply Voltage
• 24V DC

• Surface Treatment
• Plastic Enclosure

• Technique
• Modular Plug-in

• Temperature
• 0C to 55C (Operating)

• Thickness
• Standard Module

• Tolerance
• 0.5% of full scale

• Usage
• Industrial Automation, Process Control

• Weight
• Approx. 200g

• Equipment Type
• Analog Combination Module

• Application
• PLC Systems, Process Control

• Brand Name
• Allen-Bradley

• CPU Support
• CompactLogix and MicroLogix 1500 controllers

• Color
• Light Grey

• Design
• Modular, Compact Form Factor

• Dimension (L*W*H)
• Approx. 118 x 35 x 87 mm

• Finish
• Industrial Grade Finish

• Humidity
• 5-95% non-condensing

• IP Rating
• IP20

• Input Voltage
• 0-10V or 0-20mA (Configurable)

• Installation Guideline
• DIN Rail or Panel Mounting, side-by-side with controller or power supply

• Material
• Plastic/Metal Housing

• Model No
• 1769-IF4FXOF2F

• Mounting Type
• DIN Rail / Panel Mount

• Output Voltage
• 0-10V or 0-20mA (Configurable)

• Part
• Analog Mixed I/O Module

• Process
• Signal Conditioning/Isolation

• Processing
• Analog Input/Output Processing

• Product Type
• I/O Module

• Service Period
• Continuous Operation

• Size
• Compact module

• Standard
• CE, UL, CSA Certified

• Supply Voltage
• 24V DC

• Surface Treatment
• ESD Resistant Coating

• Technique
• Factory Assembled, SMD

• Temperature
• -20C to +60C operating

• Thickness
• Standard Module Thickness

• Tolerance
• See Data Sheet (typically 0.1% FSR)

• Usage
• Industrial Automation

• Weight
• Approx. 300 g

• Equipment Type
• Output Module

• Application
• For MicroLogix PLC Systems

• Brand Name
• Allen-Bradley

• CPU Support
• MicroLogix Series (Expansion Module)

• Color
• Gray

• Design
• 16-channel relay

• Dimension (L*W*H)
• Height approx. 90 mm, Width approx. 87 mm, Depth approx. 40 mm

• Finish
• Molded finish

• Frequency
• 50/60 Hz (field side)

• Humidity
• 5% to 95% non-condensing

• Installation Guideline
• DIN rail or panel mount

• Material
• Industrial-grade plastic housing

• Model No

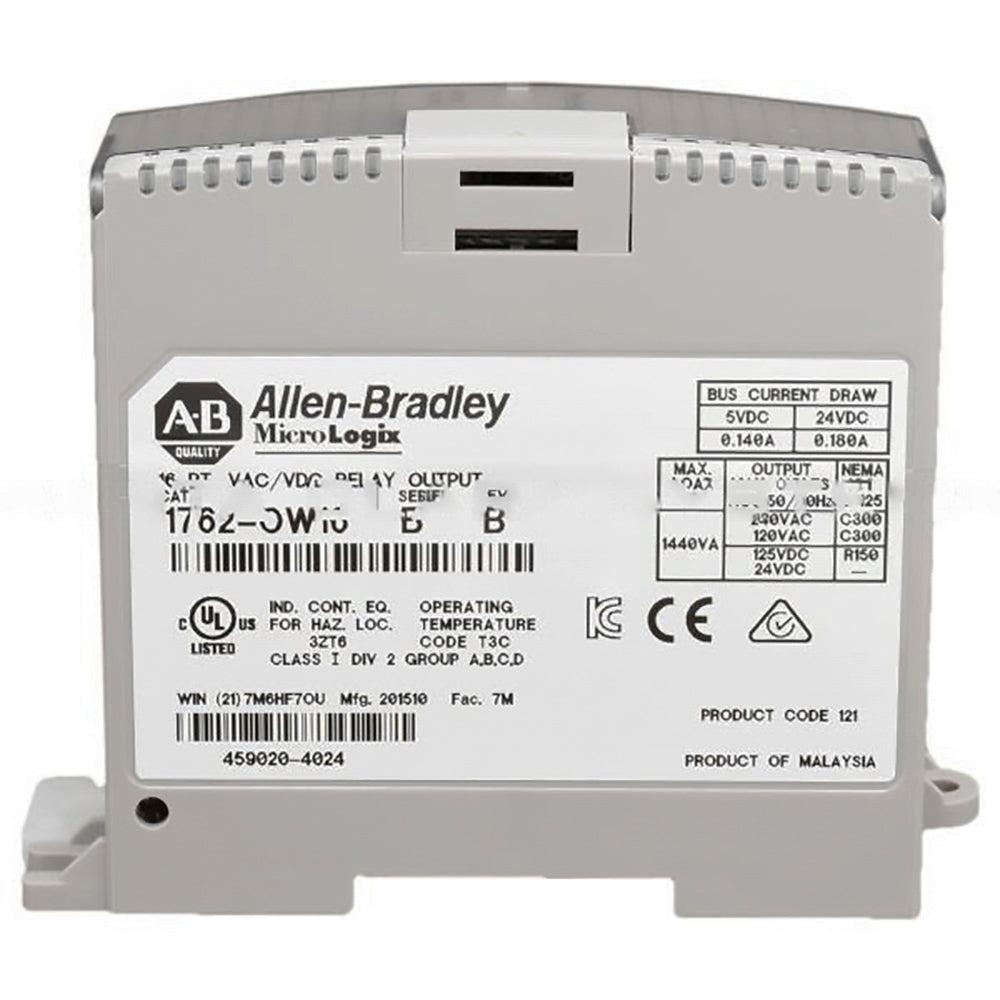

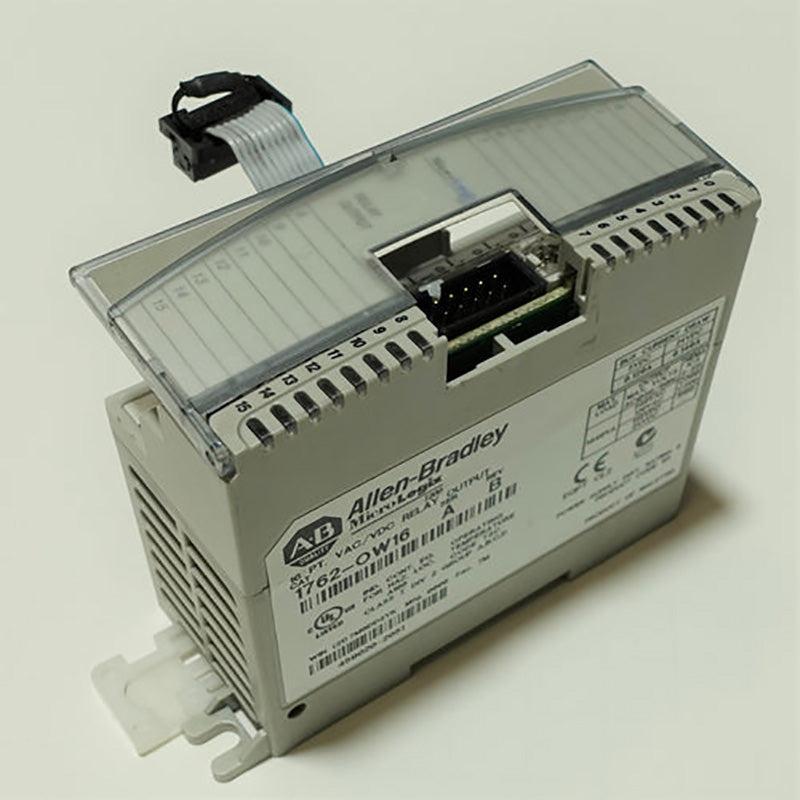

• 1762-OW16

• Mounting Type
• DIN rail or panel mount

• Output Voltage
• 240V AC max, 30V DC max (switching)

• Part
• 1762-OW16

• Process
• Digital Output Switching

• Product Type
• Relay Output Module

• Service Period
• Long-life relay design

• Size
• Compact

• Standard
• CE, c-UL-us, KC, EAC certified

• Supply Voltage
• 5VDC, 24VDC (module power supply)

• Technique
• Electromechanical relay

• Temperature
• Operating: 0C to 55C

• Usage
• Industrial Automation, PLC Expansion

• Weight
• Approx. 250g

• Equipment Type
• Digital Input Module

• Application
• PLC Input Expansion

• Brand Name
• Allen-Bradley

• Color
• Grey

• Design
• Slim, Modular

• Dimension (L*W*H)
• (approximately) 75mm x 12mm x 55mm

• Finish
• Standard Industrial Finish

• Frequency
• DC Module, Not Applicable

• Humidity
• 5% to 95% non-condensing

• IP Rating
• IP20

• Input Voltage
• 24V DC

• Installation Guideline
• DIN Rail Mountable

• Material
• Plastic, Electronic Components

• Model No
• 1734-IB8

• Mounting Type
• DIN Rail

• Part
• Digital Input Module

• Process
• Signal Input/Output

• Processing
• Electronic

• Product Type
• POINT I/O Module

• Service Period
• As per Operating Conditions

• Size
• Compact

• Standard
• IEC, CE, UL

• Supply Voltage
• 24V DC

• Technique
• Solid State Switching

• Temperature
• -20C to 55C operating

• Thickness
• Standard

• Tolerance
• Standard

• Usage
• Industrial Automation, Control Panels

• Weight
• Approx. 40 g

• Equipment Type
• Processor Unit

• Application
• SLC 500 System

• Brand Name
• Allen-Bradley

• CPU Support
• SLC 5/03 Processor

• Color
• Gray

• Design
• Standard SLC 500 form factor

• Dimension (L*W*H)
• Not Stated

• Finish
• Industrial molding

• Frequency
• Not Stated

• Humidity
• Not Stated

• IP Rating
• Not Stated

• Input Voltage
• 5V DC / 24V DC

• Installation Guideline
• Install in SLC 500 chassis with power off

• Material
• Electronics/Plastic enclosure

• Model No
• 1747-L532

• Mounting Type
• Chassis/DIN Rail (in SLC rack)

• Part
• Processor Unit

• Process
• Logic/Automation Control

• Processing
• Digital

• Product Type
• Programmable Logic Controller Processor

• RAM
• 32K (word) user memory

• Service Period
• Not Stated

• Size
• Standard SLC module size

• Standard
• UL, CE, CUL, FM, Class I Div 2

• Supply Voltage
• 5V DC / 24V DC

• Technique
• Microprocessor-based logic

• Temperature
• Not Stated

• Thickness
• Not Stated

• Tolerance
• Not Stated

• Usage
• Factory automation, process control

• Weight
• Not Stated

• Equipment Type
• PLC Expansion Module

• Application
• Industrial Automation, PLC Systems

• Brand Name
• Siemens

• CPU Support
• S7-1200 Series PLCs

• Color
• Grey

• Design
• Compact Modular Cuboid

• Dimension (L*W*H)
• Approximately 38 x 62 x 21 mm

• Finish
• Matte

• Frequency
• DC Operation

• Humidity
• 5% to 95% (non-condensing)

• IP Rating
• IP20

• Installation Guideline
• DIN rail mounting, plug into right side of S7-1200 CPU/CM/CP

• Material
• ABS Plastic, Electronic Components

• Model No
• 6ES7232-4HA30-0XB0

• Mounting Type
• DIN Rail Mount

• Output Voltage
• +/-10V DC

• Part
• Analog Output Module

• Process
• Signal Conversion for PLCs

• Processing
• Electronic Signal Processing

• Product Type
• SM 1222 SB 1222 AQ Expansion Module

• Service Period
• Designed for Long-Term Industrial Use

• Size
• Compact

• Standard
• IEC 61131

• Supply Voltage
• From S7-1200 PLC; No separate supply required

• Surface Treatment
• Anti-corrosive Coating

• Technique
• Injection Moulded Housing, Soldered Electronics

• Temperature
• Operating: 0C to +55C

• Thickness
• Standard (About 21mm)

• Tolerance
• High Precision Analog Output

• Usage
• For extending S7-1200 analog output capabilities

• Weight
• Approx. 50 g
