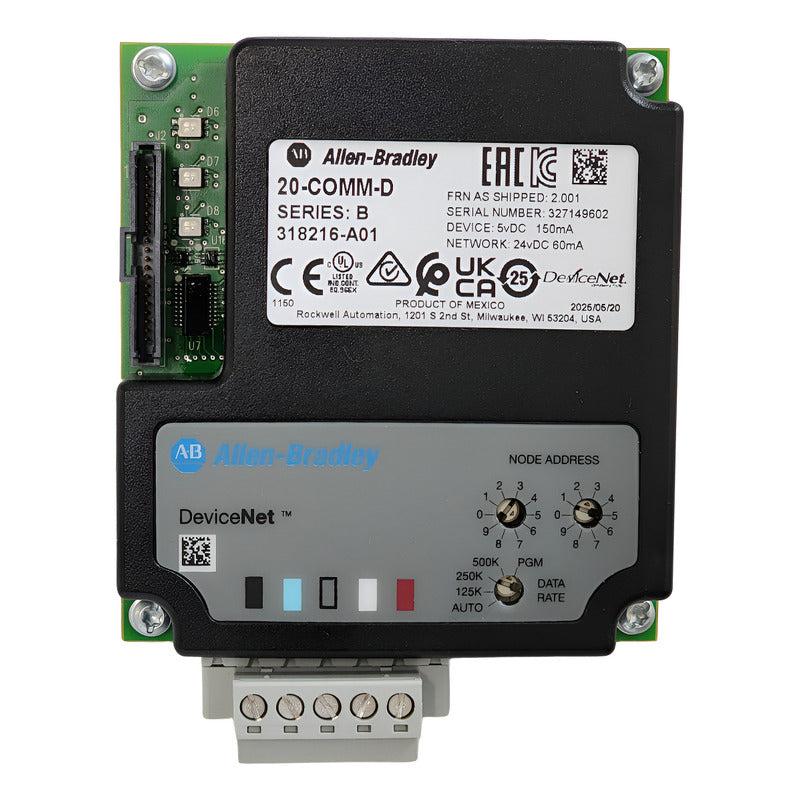

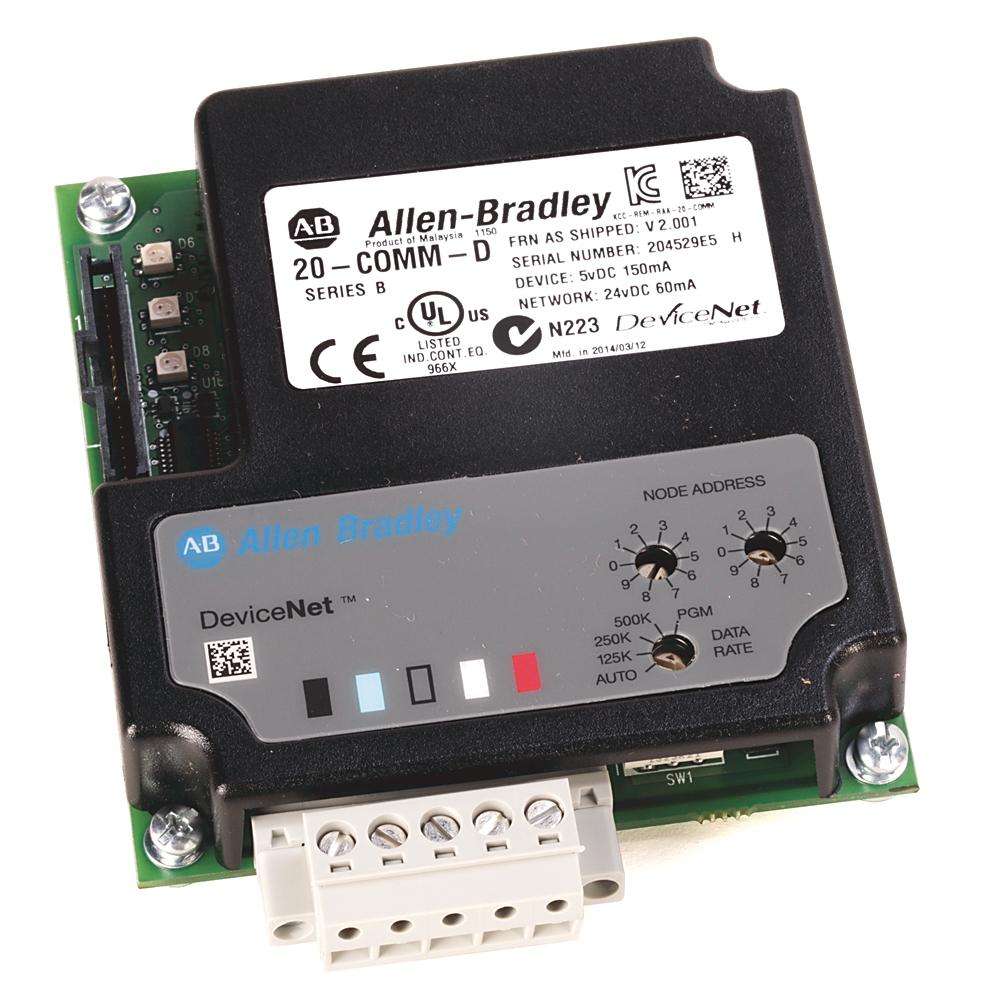

Allen-Bradley 20- COMM-D

Name: Allen-Bradley 20- COMM-D
Brand: M/S COGNIX AUTOMATION CONTROL
Price: 16300.0 INR
Availability: InStock

Price 16300.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Allen-Bradley 20- COMM-D Specification

Weight
Approx. 100 grams

Supply Voltage
Powered through drive backplane (no direct supply)

Finish
Molded, Mat Finish

Installation Guideline
Install as per Allen-Bradley PowerFlex documentation

Tolerance
Standard Industrial Tolerance

IP Rating
IP20 (typical for internal modules)

Humidity
5% to 95% non-condensing

Brand Name
Allen-Bradley

Temperature
Operating: 0C to 50C

Design
Snap-in module for PowerFlex drives

Usage
Allows PowerFlex Drives to connect to DeviceNet networks

Equipment Type
Drive Communication Adapter

Process
Electronic Communication Interface

Standard
CE, c-UL, UL listed

Dimension (L*W*H)
Approx. 100 mm 70 mm 25 mm

Mounting Type
Plug-in/Module mount for PowerFlex Drives

Processing
Factory Assembled

Material
Industrial Grade Plastic and PCB

Thickness
Standard module thickness

Surface Treatment
Non-corrosive plastic

Product Type
DeviceNet Adapter

Application
Industrial Automation, Motor Drive Communication

Technique
PLC Network Communication

Size
Compact module size

Service Period
Long-life, as per environment

Part
Communication Adapter

Color
Black/Grey

Model No
20-COMM-D

Isolation
Optical isolation between DeviceNet and Drive

Connector Type
Pluggable terminal block for DeviceNet wiring

Module Compatibility
Allen-Bradley PowerFlex 4/40/400/7-Class Drives

Environment
Indoor use, pollution degree 2

Max Power Consumption
< 2W (from drive backplane power)

Agency Approvals
CE, UL, c-UL, C-Tick, and others

Status Indicators
LEDs for Module, Network, and Status diagnostics

Firmware Upgradeable
Yes, flash upgrade supported

Communication Protocol
DeviceNet

Configuration
Via RSNetWorx for DeviceNet or DriveExplorer/DriveTools

Baud Rate
125 kbps, 250 kbps, 500 kbps (auto detected)

Allen-Bradley 20- COMM-D About

Redeem the competitive advantages of the Allen-Bradley 20-COMM-D, a renowned communication adapter crafted for PowerFlex drives to seamlessly connect with DeviceNet networks. This pivotal module boasts exceptional compatibility, supporting all standard baud rates (auto-detected) and simple configuration via RSNetWorx, DriveExplorer, or DriveTools. Top features include LED diagnostics, optical isolation, and firmware upgradeability. With CE, UL, c-UL, and C-Tick approvals, it provides unmatched reliability and safety. Compact, robust, and industrial-grade, this adapter ensures outstanding integration and longevity for demanding industrial automation environments.

Optimal Usage and Distinct Material Features

The Allen-Bradley 20-COMM-D excels as a drive communication adapter, specifically designed for seamless integration with PowerFlex series drives in industrial automation environments. For both specific and general motor drive communications, its durable industrial-grade plastic construction provides long-lasting resilience. Snap-in design and plug-in convenience ensure straightforward installation, while the molded matte finish and optical isolation enhance operational safety and longevity in routine and advanced network applications.

Efficient Packaging and Streamlined Order Handling

Each Allen-Bradley 20-COMM-D adapter is carefully packaged to maintain quality during transportation. The compact size ensures cost-effective shipping through leading FOB ports as required by your location. List price and quotations are available upon request to meet competitive pricing needs. Samples can be arranged for qualified buyers, enabling testing before bulk order processing. Our renowned service includes prompt dispatch and comprehensive documentation for hassle-free integration and installation.

FAQ's of Allen-Bradley 20- COMM-D:

Q: How do I configure the Allen-Bradley 20-COMM-D communication adapter?

A: Configuration is conveniently managed via RSNetWorx for DeviceNet or through Allen-Bradley's DriveExplorer/DriveTools software, allowing flexible setup for your network and drive requirements.

Q: What drives are compatible with the 20-COMM-D module?

A: This adapter is specifically designed for seamless connection with Allen-Bradley PowerFlex 4, 40, 400, and 7-Class drives, making it ideal for a range of industrial automation applications.

Q: Where should the Allen-Bradley 20-COMM-D be installed?

A: Install the module directly into PowerFlex drives as per Allen-Bradley's detailed documentation. Its snap-in design and pluggable terminal block ensure simple, secure mounting for indoor use.

Q: What are the benefits of using the 20-COMM-D in industrial automation?

A: Benefits include reliable DeviceNet communication, diagnostic LEDs for status monitoring, optical isolation for signal protection, and compliance with multiple agency approvals for safety and quality assurance.

Q: Is the 20-COMM-D firmware upgradeable?

A: Yes, the device supports firmware upgrades via flash, ensuring adaptability and extended product lifecycle as new features and improvements become available.

Q: When can a quotation or sample for the Allen-Bradley 20-COMM-D be obtained?

A: Quotations and samples are available upon request. Simply contact your supplier or trader to initiate the process and receive up-to-date list pricing tailored to your order size.
